Description

DQER: circular high induction diffuser with fixed blades

• installation height between 2.7 - 4.0 m
• operating range with ∆t ± 10°C
• suitable for systems with variable flow

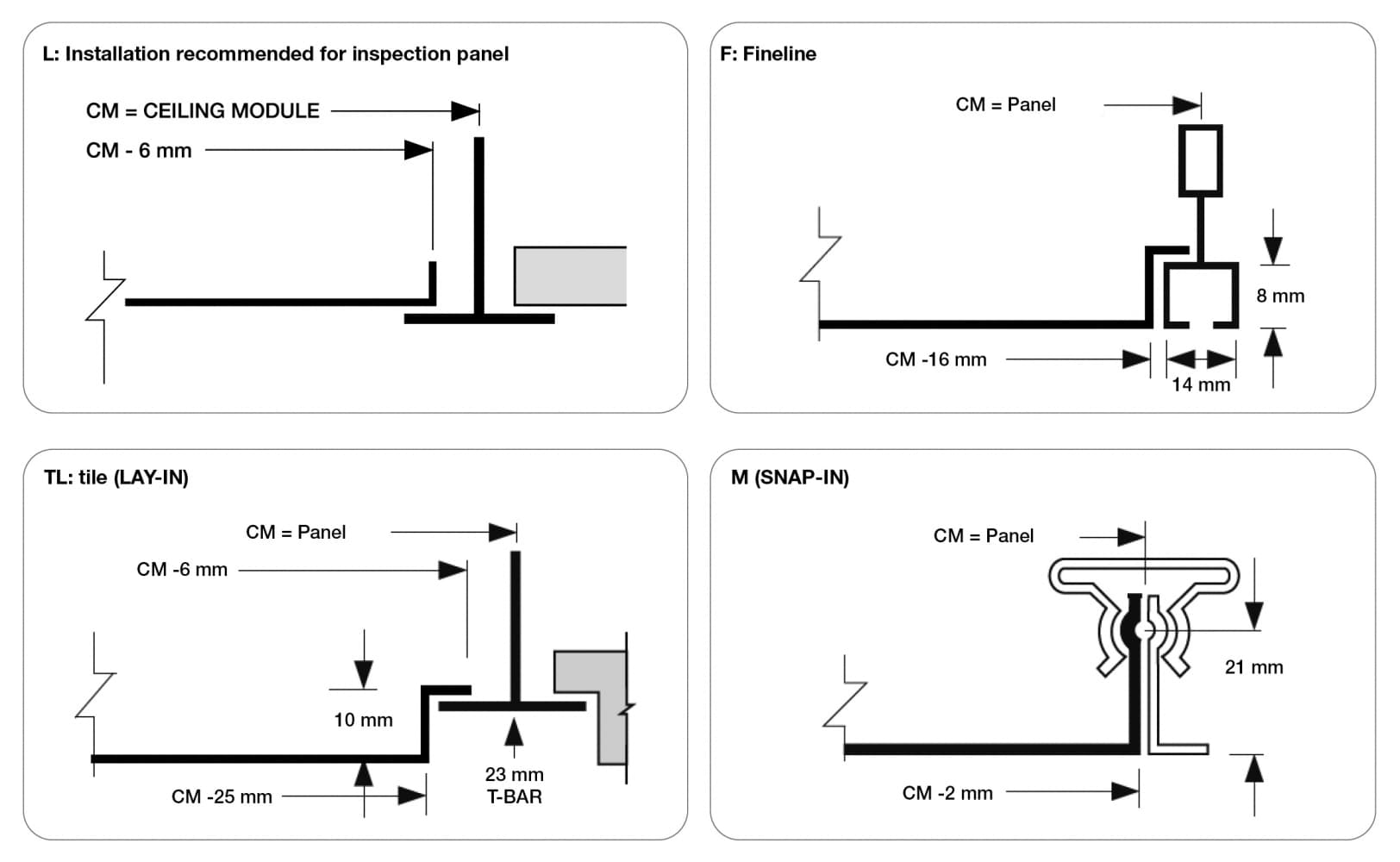

• suitable for assembly with or without false ceiling
• made of aluminium with RAL 9010 finish

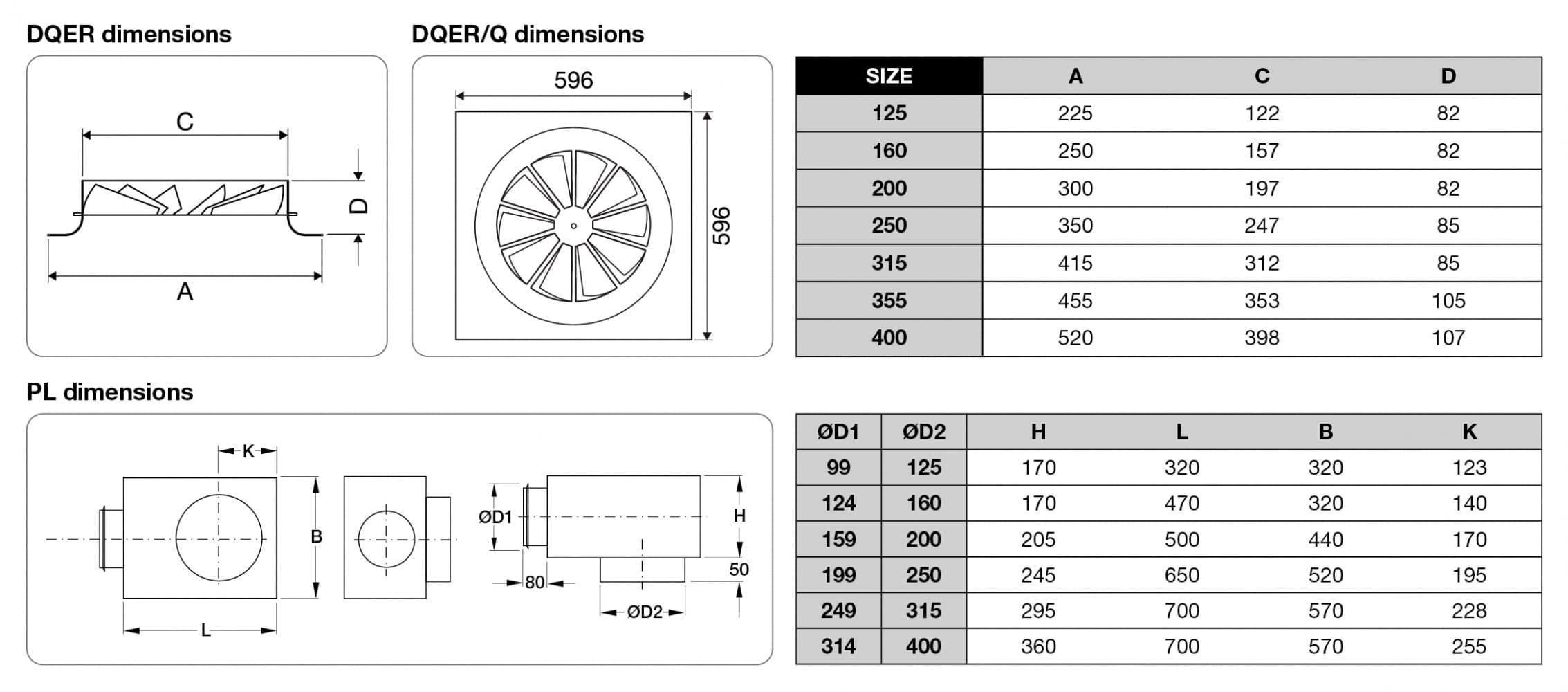

DQER/Q: like DQER but with 596x596 panel for assembly on false ceiling measuring 600x600

Accessories

PL: galvanised steel side entry plenum

R: equaliser wire

S: volume control damper on plenum

I: external insulation reaction to fire class B-s2-dO

TCC: spigot with equaliser and special brackets for connection to flexible pipe in plasterboard false ceiling (consider a smaller size than the diffuser for the flexible pipe Ø
[e.g. Diffuser Ø 200 > TCC Intake Ø 160]).

Special versions

VR: coating according to RAL 9005 / 9006 table

Other RAL colours on request
