Description

DMU: diffusers with adjustable micro nozzles in circular, square or rectangular version for ceiling or wall

• installation height between 2.7 and 4.0 m
• application on duct or plenum
• made of aluminium with RAL 9010 white finish, micro nozzles in ABS + white polycarbonate
• fastening with central screw (not for DMUR)

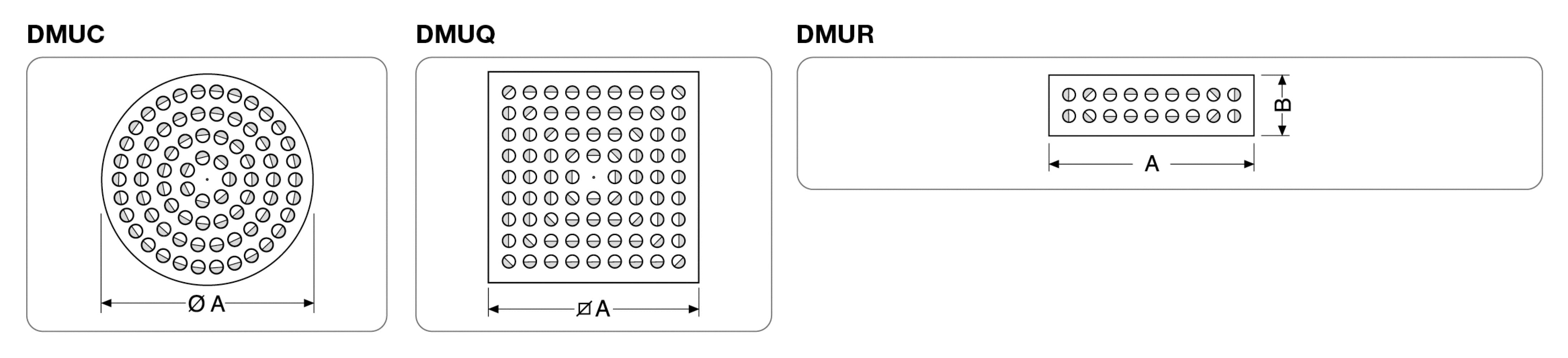

DMUC: circular version

DMUQ: square version

DMUR: rectangular version

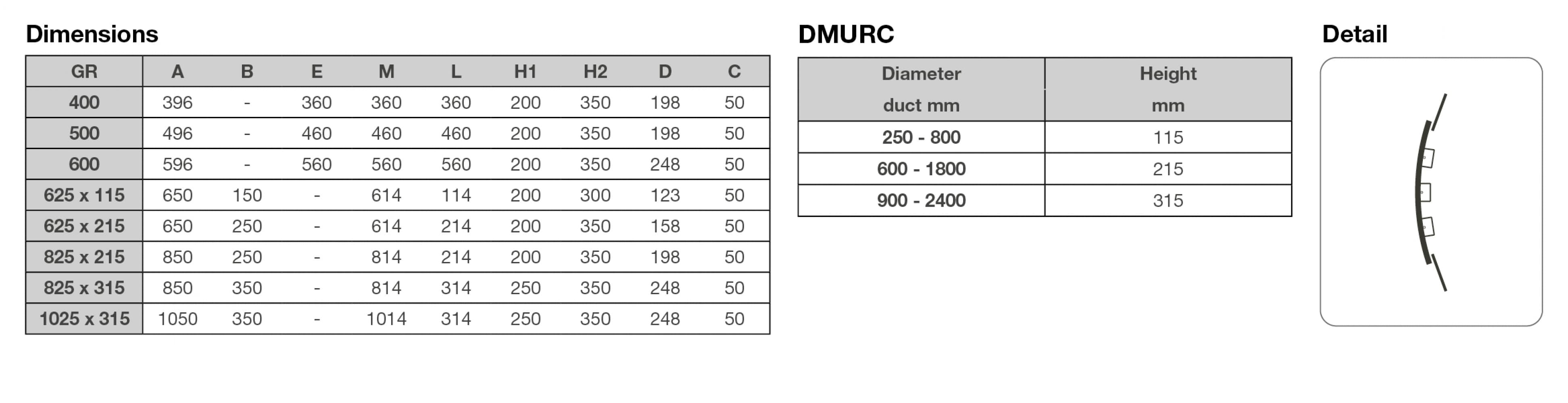

DMURC: like DMUR but in version for circular duct

Accessories

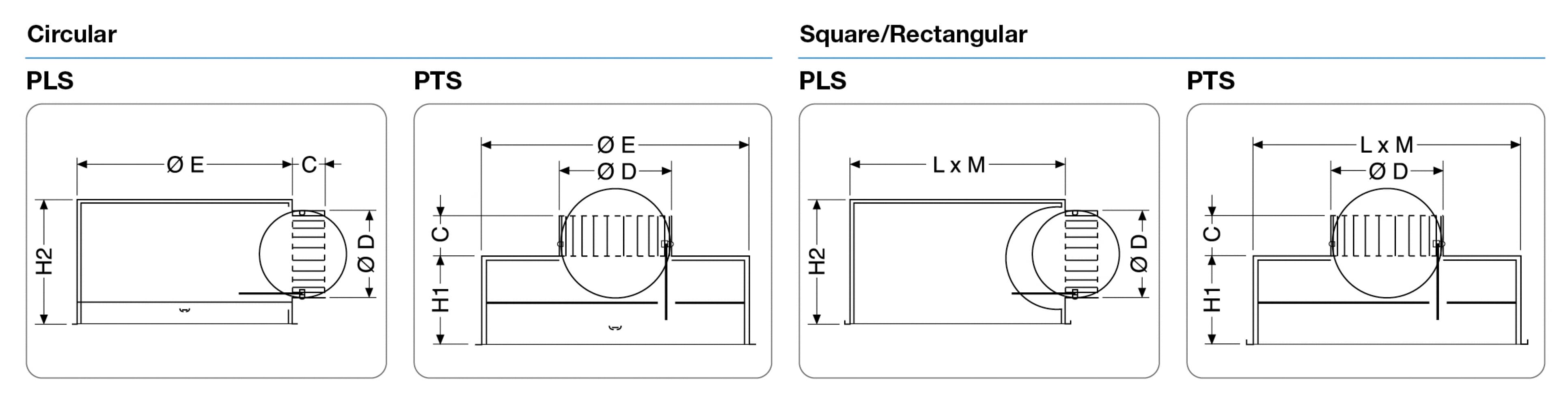

PL: side entry plenum

PT: upper entry plenum

I: external insulation reaction to fire class B-s2-dO

R: equaliser wire

S: damper on plenum

Special versions

• Black or grey micro nozzles

VR: coating according to RAL 9005 / 9006 table

Other RAL colours on request

For 600 size, use the pyramid plenum
