Description

VC-A: centrifugal fan with forward inclined blades

• powder-coated carbon steel casing
• 4/6/8 pole motors, three-phase 400/230/50 Hz
• max fluid temperature 60°C
• air flows between 500 and 20000 m³/h
• useful static pressure between 250 - 800 Pa

VC-R: like VC-A but with backward inclined blades

• air flows between 500 and 200000 m³/h
• useful static pressure between 250 - 2000 Pa

Accessories

• volume control / shut-off dampers
• gravity dampers
• flow regulation with inverter
• sound attenuators
• water or electric coils

Special executions

• ATEX execution:

- ATEX 2 G Ex h – IIB T1….T4 Gb

- ATEX 2 D Ex h – IIIB T450°C….T135°C Db

• corrosion proof execution (special coating or stainless steel)
• execution for high temperatures, max 400°C
• execution with dual motor

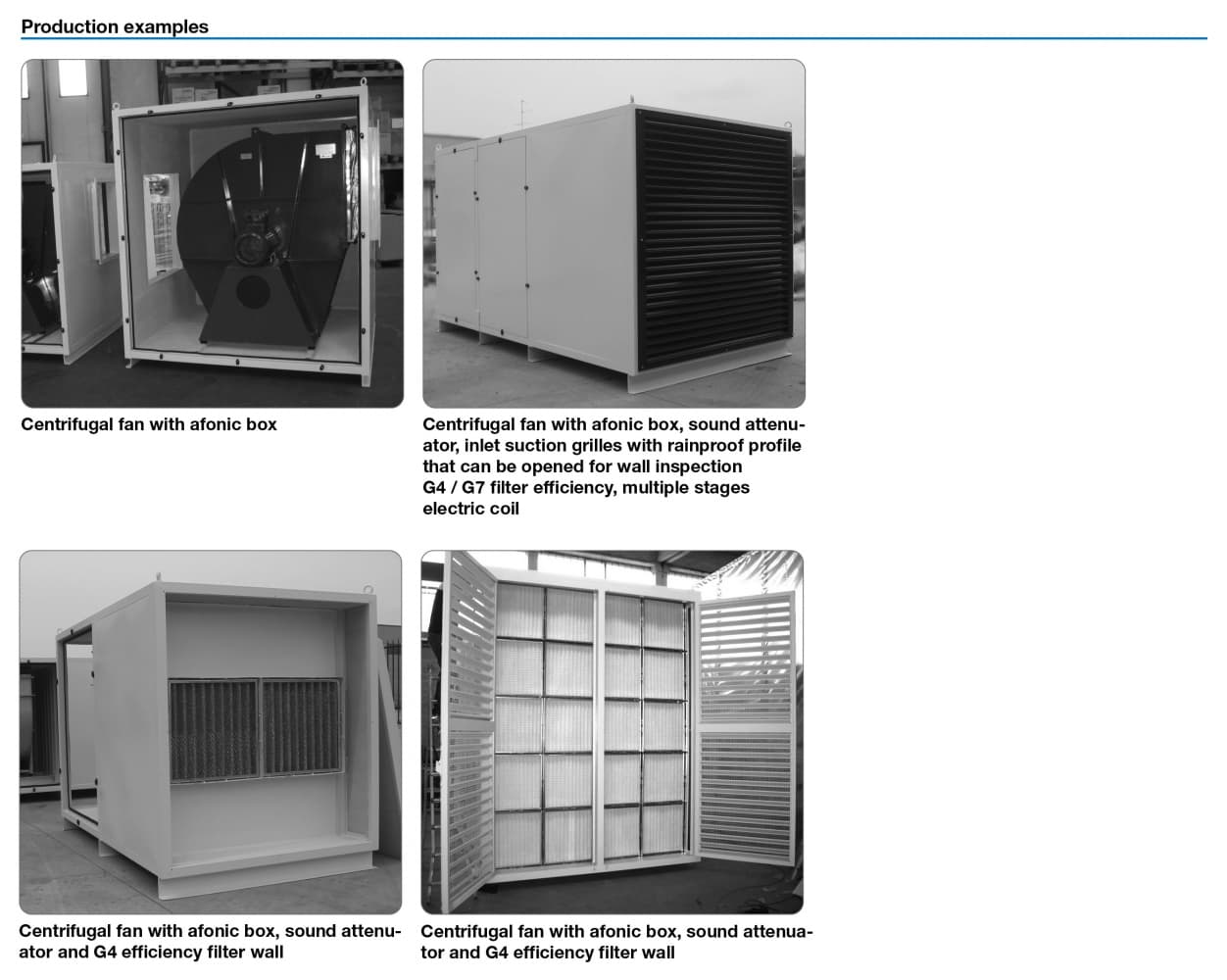

• afonic execution via cover box

Prices on request
