Motor outside the flow

Description

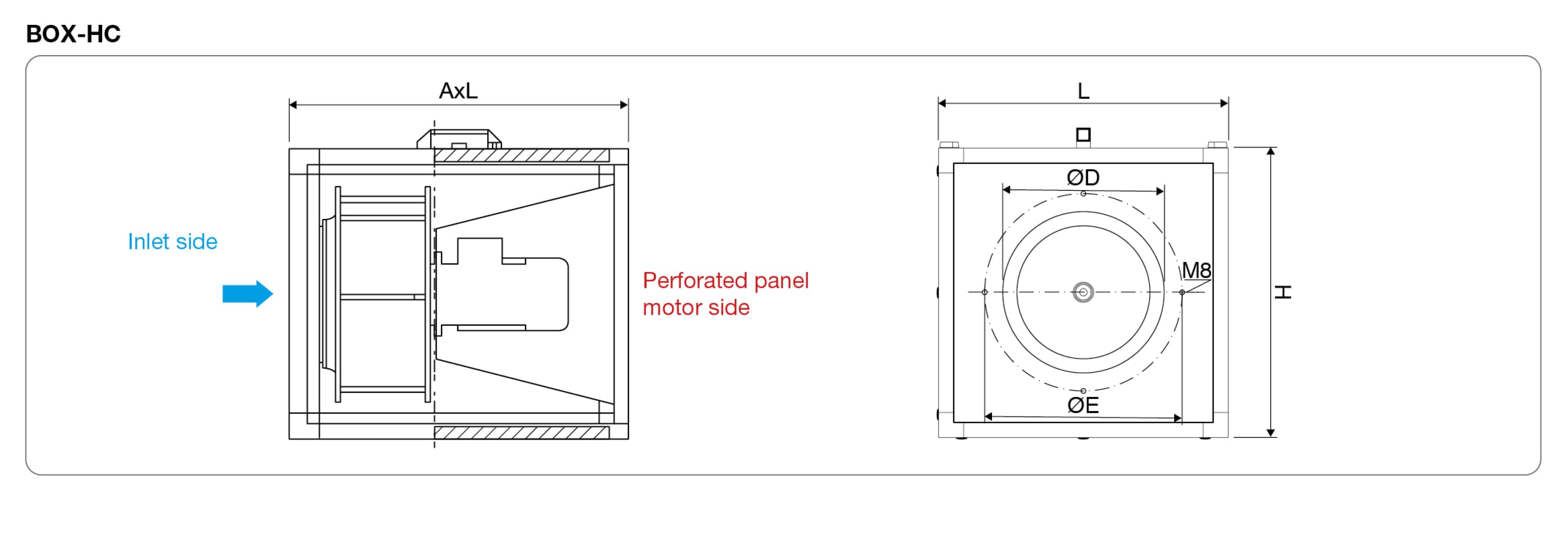

BOX-HC: Centrifugal box fan with single inlet

(Plug Fan) with motor outside the flow, suitable for extracting hot air with temperatures up to 150°C

• frame with extruded aluminium profiles
• galvanised panelling
• double panels with heat and sound insulation th. 25 mm in polyurethane foam with 40 Kg/m³ density, reaction to fire class “0“
• backward inclined impellers in galvanised steel
• 4 removable panels allow you to direct the air in 4 different directions by drilling the panel
• grease discharge

Accessories

• IS1 on-off safety switch 16A - 600V - IP65 1 speed
• single-phase control REM 600/900
• NE S1 inverter

PA: support feet
TPE: rain protection cover for exterior
