Description

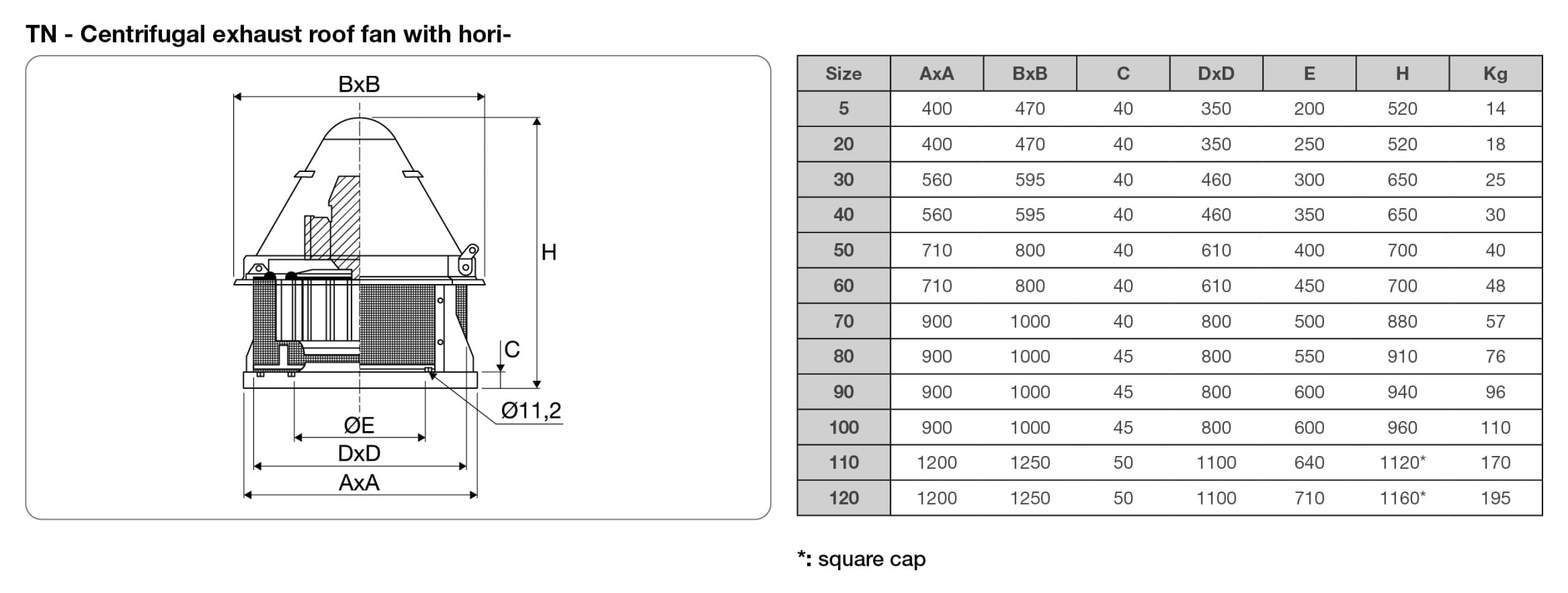

TN: centrifugal exhaust roof fan with horizontal flow

• made of galvanised steel
• protective cap in thermoplastic polymer (ABS)
• centrifugal impeller with backward inclined blades
• closed motor with external ventilation, IP 55 protection rating, class F insulation
• air temperature from -20°C to +80°C

TN 400°: centrifugal exhaust roof fan with horizontal jet approved at 400 ° 2 h

• uprights, motor plate, protective mesh in galvanised steel
• protective cap in thermoplastic polymer (ABS)
• centrifugal impeller with backward inclined blades
• closed motor with external ventilation, IP 55 protection rating, class F insulation
• air temperature 80°C in continuous use or 400°C for hours in an emergency

Accessories

• counter-base to set in CB
• gravity damper SG
• frame for flat cover, externally insulated (on request)
• inverter

Special executions

M: single-phase
T: Three-phase
