Description

SP: galvanised steel frame th. 10/10, aluminium blade with gasket th. 7/10 mm, stub shaft Ø 6 mm, anti-tip nylon bearings. Suitable for speeds up to 5 m/s; for higher speeds, we recommend the version with conjugated blades.

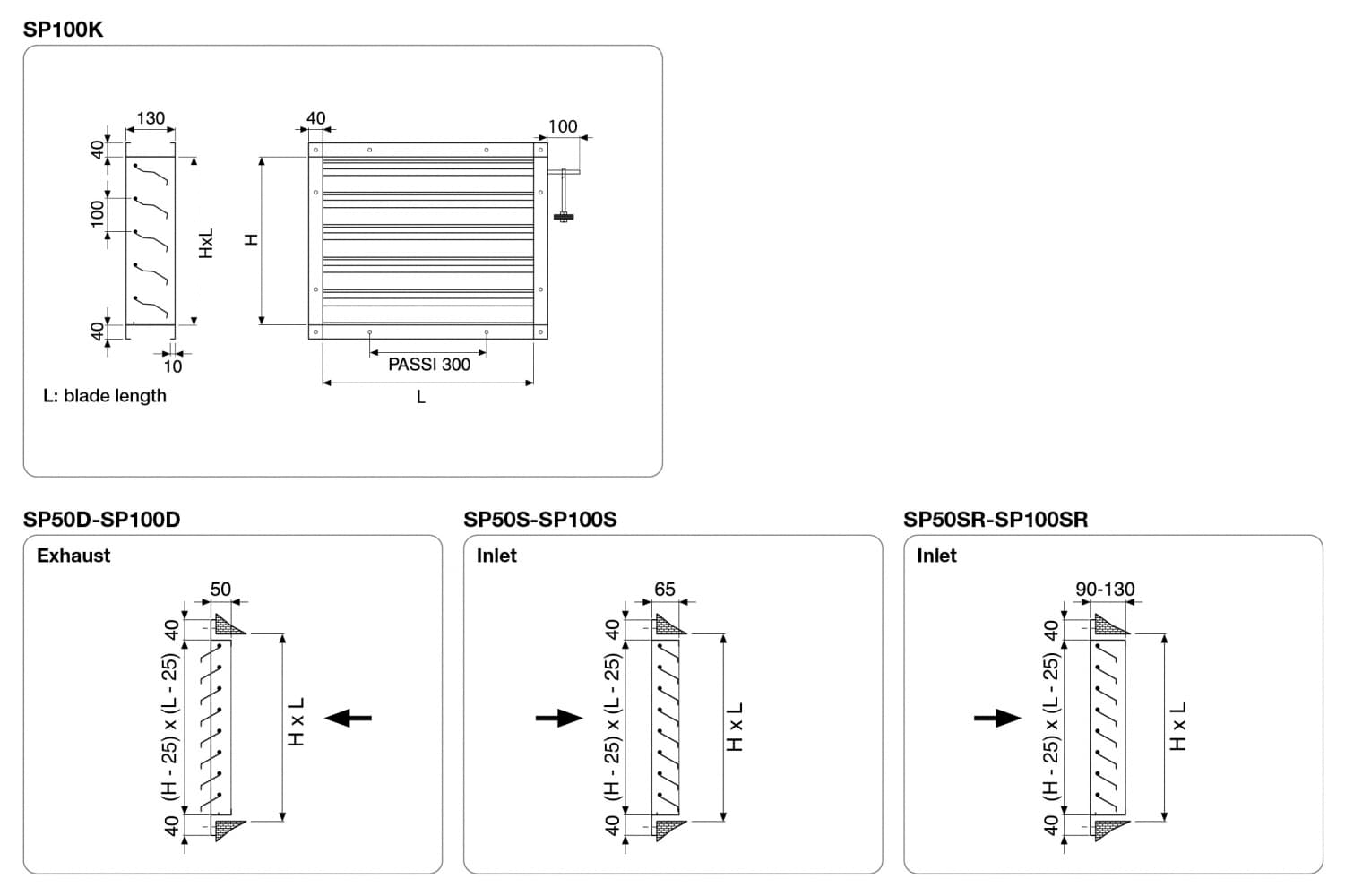

SP50 D/S: pitch 50 mm SP100 D/S: pitch 100 mm SP…D: EXHAUST

SP…S: INLET

SP100K: like SP100 but with frame for duct assembly

Available execution

• Intermediate dimensions (larger sizes) or special flanges
• In AISI 304 stainless steel
• In AISI 316 stainless steel
• Version entirely in aluminium
• Continuous solid shaft, Nylon, Teflon or Bronze bearings
• Anti-tip device
• Circular lightweight or heavy version also available

SP 100 KVH: like SPK100K but with Ø 12 shafts, conjugated blades + adjustable counterweight outside the flow, mounted on the height side

SP...SR: inlet version with mesh

ATEX execution: II 2G Ex h IIB/IIC T1…T6Gb
II 2D Ex h IIIC T 450°C…T 85°C Db
