Description

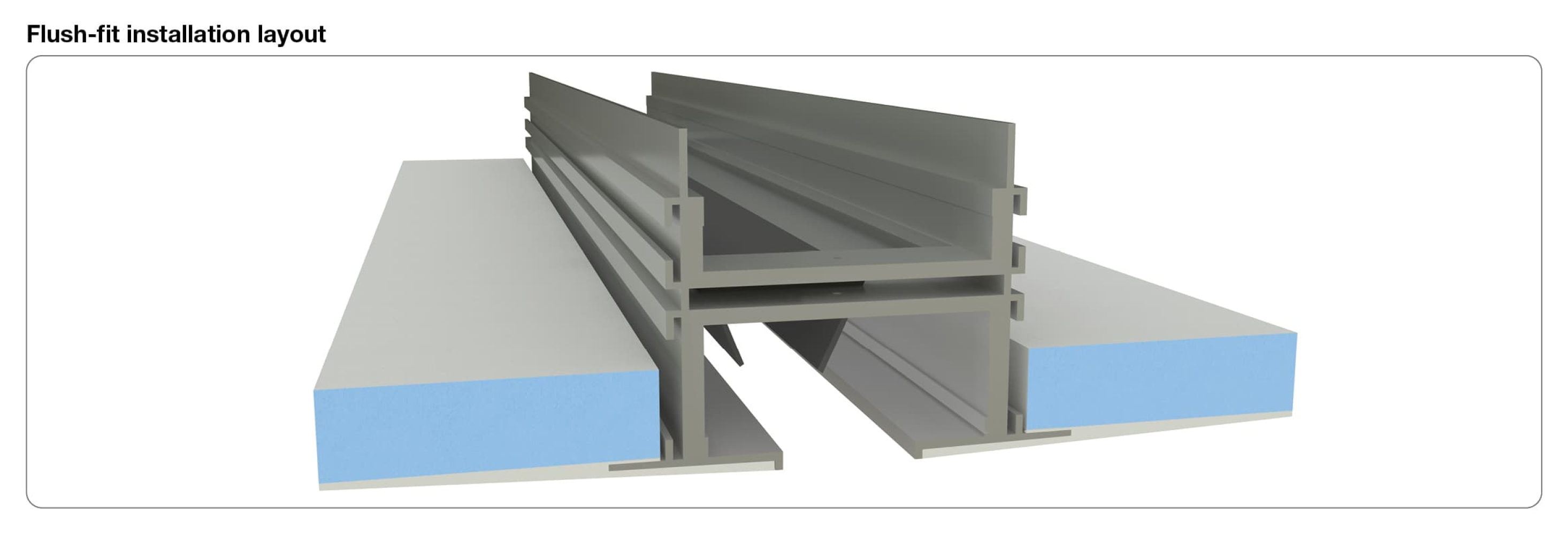

FLH...BBC: slot diffuser with special flush-fit profile, suitable for installation in plasterboard false ceilings so only the slot is visible

• made of sturdy extruded aluminium profiles with double deflectors coated in black RAL 9005 to direct and balance the air flow
• optional wall installation
• maximum length for individual piece 2000 mm with ends
• continuous version with joint and terminal profiles at the ends
• various profiles and types of fastening to meet architectural needs

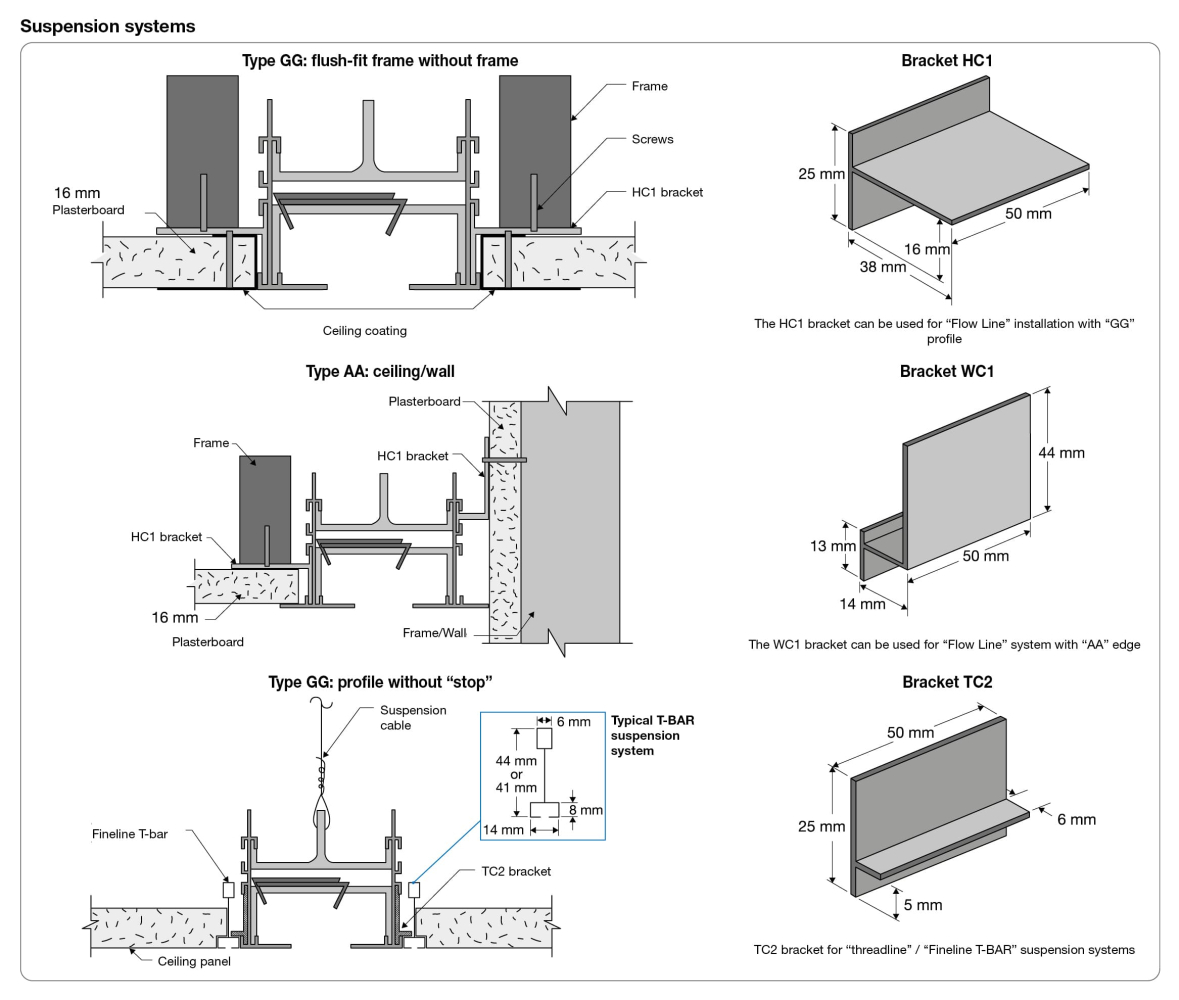

FLCMB: fastening bracket from the room

• optional rounded version

FLH 05 slot 15 mm

FLH 10 slot 25 mm

FLH 15 slot 38 mm

FLH 20 slot 51 mm

FLH 30 slot 76 mm

FLV...BBC: like FLH but for long throws both wall and ceiling

Accessories

PL: side entry plenum

PT: plenum with rear entry

I: external anti-condensate insulation reaction to fire class B-s2-dO

S: damper on plenum entry

TA: acoustic louver

• corner pieces
• suspension and closure systems

Option to customise the fastenings and plenum heights
